Professional Freezer Door Glass Solutions

Professional Freezer Door Glass Solutions

Soft Low-E glass (S1.16, S1.1Plus, D80), high visible light transmittance & Low U-value for freezer door glass. Hard Low-E glass (Tek15, Tek35, Tek70, Tek180, Tek250), a variety of high resistance is suitable for different electric heating freezer and cooler door glass. Jinjing can supply both low-E glass sheets and processed freezer door glass, such as tempered glass, insulated glass, etc.


Product Detail

Product Tags

Advantages of Jinjing Freezer Door Glass

Entire glass industry chain production and original factory processing ensure high quality control of the glass from the upstream: 13 float lines, 20 million ㎡ online Low-E production capacity & 10 million ㎡ offline Low-E line, 2 glass process bases.

Best technology & Best performance data of Soft & Hard Low-E glass meets the requirements of different working conditions, more efficient and energy-saving.

Lisec, Bottero,Glaston,Bystronic…… Advanced processing equipment ensure best quality & performance of the glass.

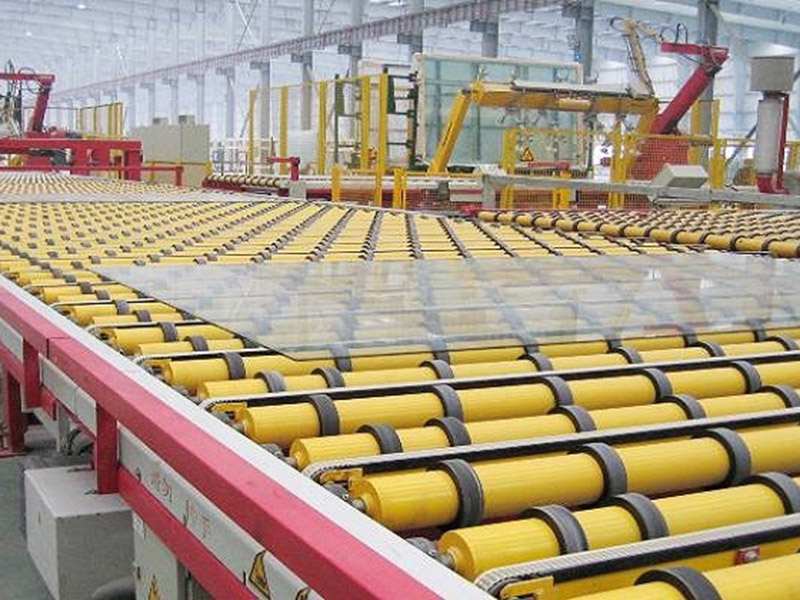

Company (4)

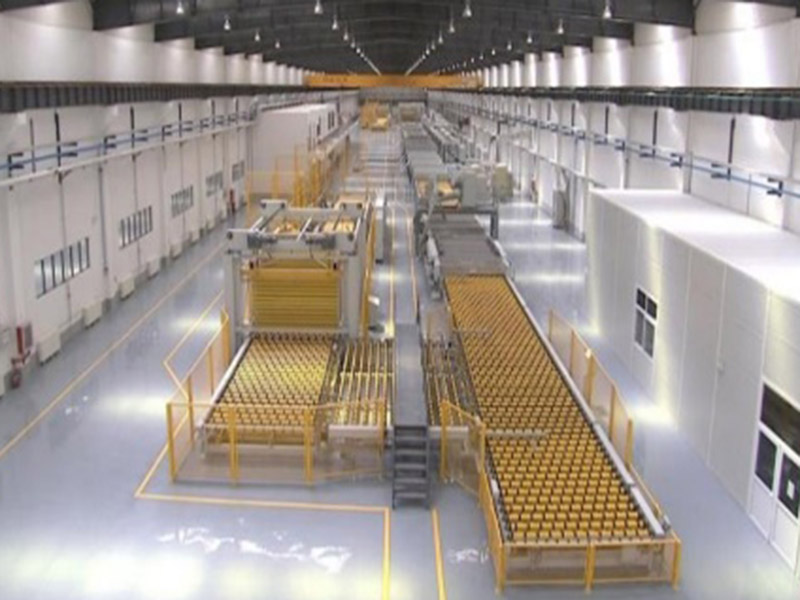

factory (1)

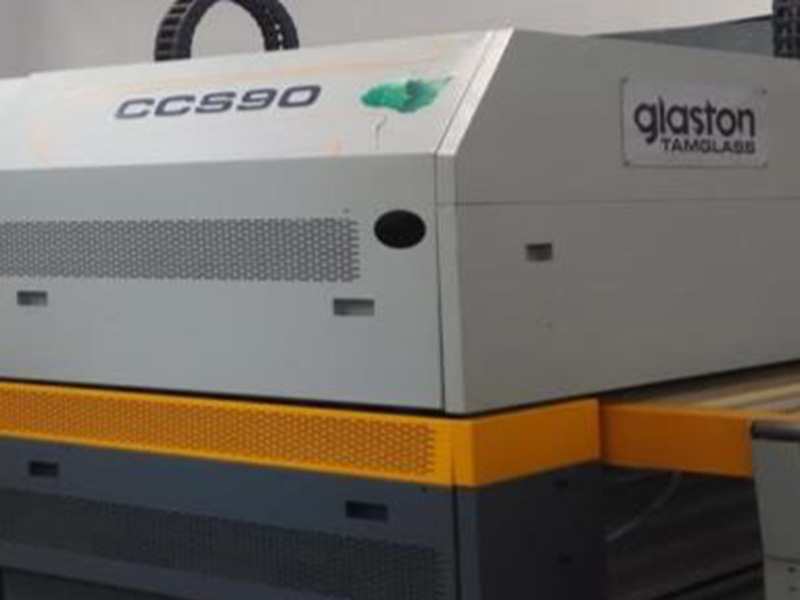

as

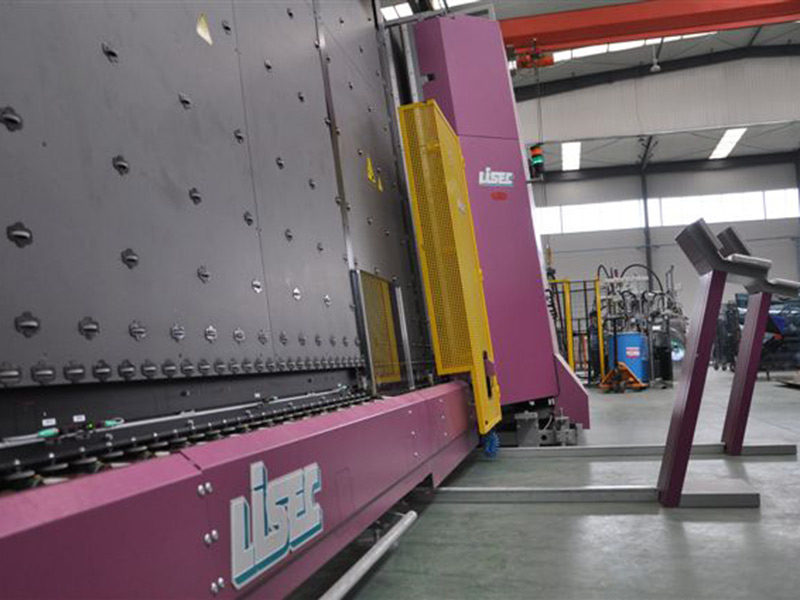

ss

Jinjing Star Products (Parameters)

Soft Low-E Glass

SOFT LOW-E GLASS VLT %
(Single sheet)
VLT %
(IGU)
Sheet Resistance
Ω/■
U-Value
(Single sheet)
U-Value (IGU-16A) Emissivity
(After Tem.)
Air Argon
S1.16 89 82 ≤3.8 2.4 1.44 1.16 0.067
    S1.1Plus 88 81 ≤2.8 2.28 1.38 1.1 0.035
D80 80 73 ≤2.1 2.25 1.34 1.08 0.03
     Solarban 75 70 ≤0.72 2.18 1.29 1.02 0.02

Hard Low-E Glass

TEK7 TEK10 TEK15 TEK35 TEK70 TEK180 TEK230 TEK250
Thickness 4mm, 3.2mm  (±0.1mm)
Visible Light Transmittance ≥80% ≥82% >83% ≥83% >83% >83% >83% >83%
Coating Reflectance ≤11% ≤11% <12% <12% <12% <12% <12% <12%
Haze ≤5% ≤1.7% ≤1% <1% ≤1% ≤1% ≤1% ≤1%
Sheet Resistance Before temper 6-8Ω/■ 8.0-9.5Ω/■ 12-14Ω/■ 34-38Ω/■ 60-68Ω/■ 180-200Ω/■ 220-270Ω/■ 260-320Ω/■
E-value <0.10 <0.13 <0.15 <0.35 <0.45 <0.60 <0.63 <0.67
Color Uniformity (ΔE*ab) ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8

Insulated Glass

Products Configuration (IGU) Thick
(MM)
Visible Light U-value
(w/m2.k)
SHGC
Tvis% Rvis%
Out In Air Argon
3mm clear +12A +3mm clear 18 83 16 16 2.7 2.55 0.78
3mm soft Low-E (S1.16) +12A +3mm clear 18 82 13 13 1.71 1.4 0.61
3mm soft Low-E (S1.1Plus) +12A +3mm clear 18 81 15 14 1.64 1.32 0.56
3mm hard Low-E (TEK15) +12A +3mm clear 18 78 18 18 1.91 1.67 0.73
3mm clear +16A +3mm clear 22 83 16 16 2.69 2.56 0.78
3mm soft Low-E (S1.16) +16A +3mm clear 22 82 13 13 1.45 1.2 0.61
3mm soft Low-E (S1.1Plus) +16A +3mm clear 22 81 15 14 1.38 1.1 0.56
3mm hard Low-E (TEK15) +16A +3mm clear 22 78 18 18 1.94 1.71 0.73
4mm clear +12A +4mm clear 20 82 16 16 2.83 2.71 0.76
4mm soft Low-E (S1.16) +12A +4mm clear 20 80 14 14 1.71 1.42 0.6
4mm soft Low-E (S1.1Plus) +12A +4mm clear 20 80 15 15 1.64 1.33 0.56
4mm hard Low-E (TEK15) +12A +4mm clear 20 77 17 17 1.94 1.69 0.73
4mm clear +16A +4mm clear 24 82 16 16 2.68 2.63 0.76
4mm soft Low-E (S1.16) +16A +4mm clear 24 80 14 14 1.47 1.22 0.65
4mm soft Low-E (S1.1Plus) +16A +4mm clear 24 80 15 15 1.39 1.10 0.65
4mm hard Low-E (TEK15) +16A +4mm clear 24 76 17 17 1.73 1.52 0.68

Production & Packaging

Full set of processing equipment & Strict quality control

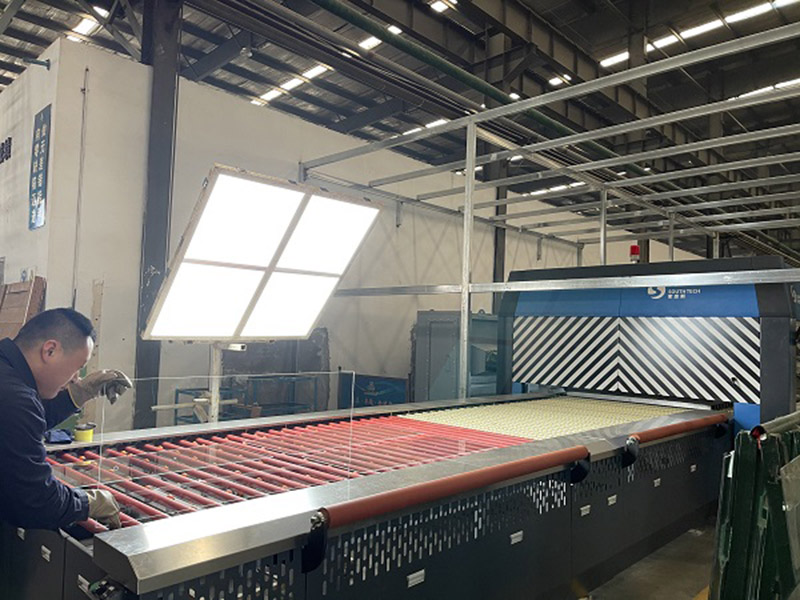

Freezer Door Glass Solutions (7)

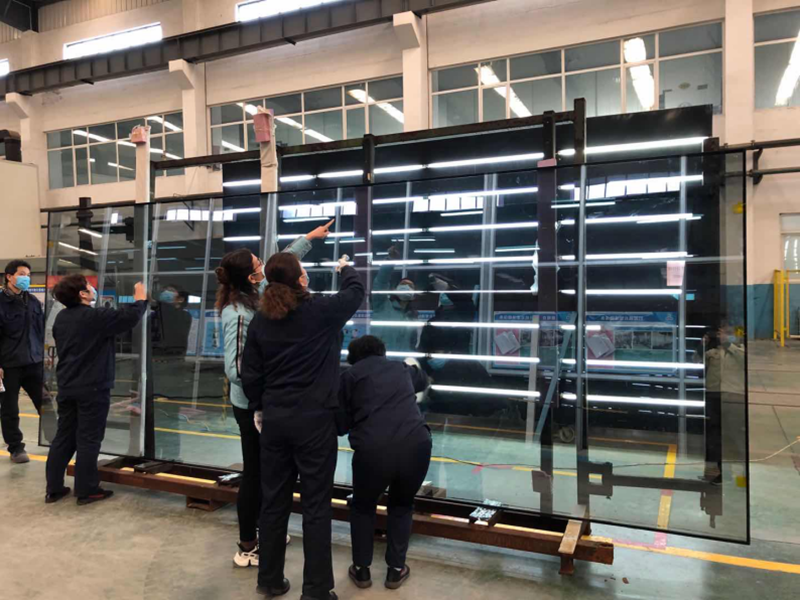

Freezer Door Glass Solutions (1)

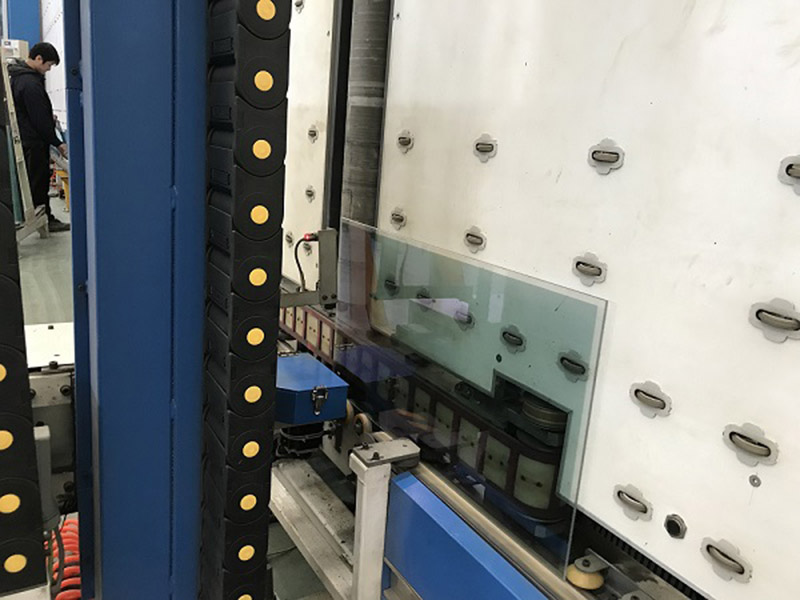

Freezer Door Glass Solutions (8)

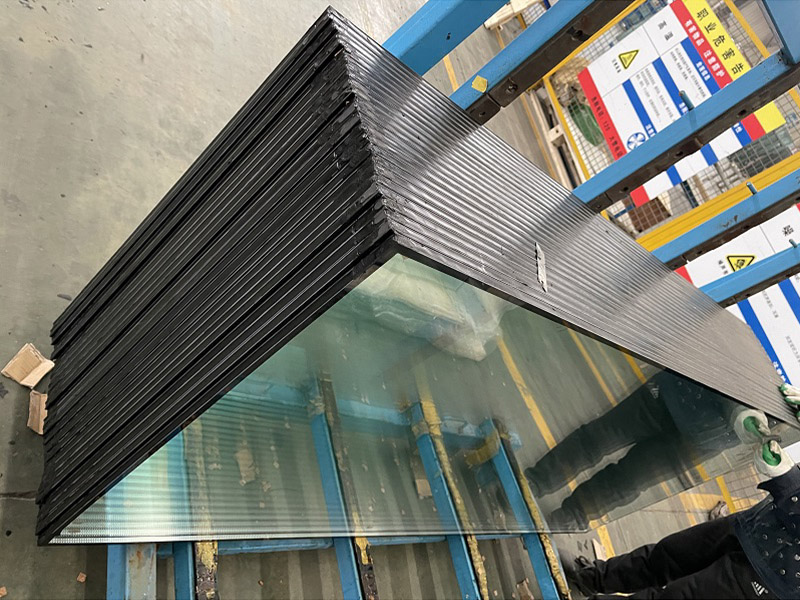

Freezer Door Glass Solutions (10)

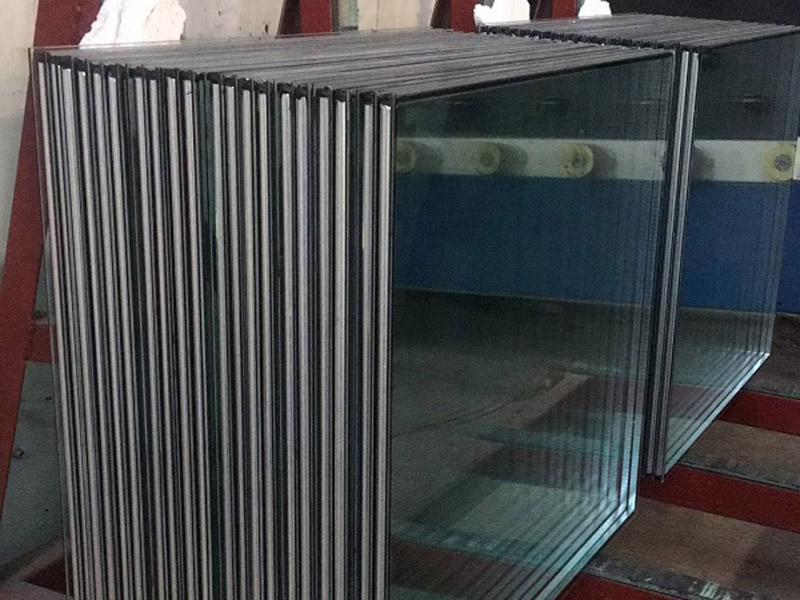

Freezer Door Glass Solutions (9)

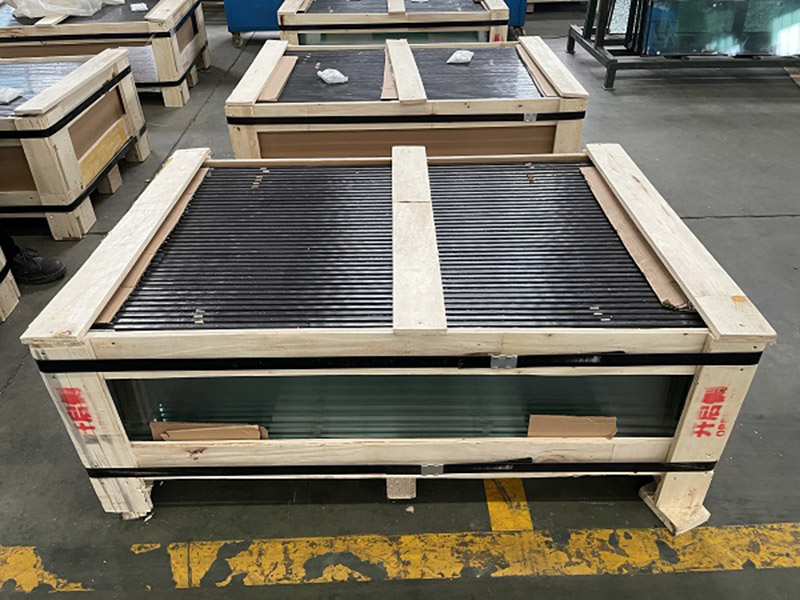

Freezer Door Glass Solutions (1)
