ZHIZHEN Anti-reflective Coating Glass

ZHIZHEN Anti-reflective Coating Glass

ZHIZHEN anti-reflective glass is produced by innovation and R&D based on its strong coating technology with vacuum magnetron sputtering process. It can dramatically reduce the reflective interference, panoramically restore the true color and natural texture of the exhibits and create a true visual experience for users. Application areas: high-definition displays, photo frames, mobile phones and cameras of various instruments, front and rear windshields, etc.


Product Detail

Product Tags

Why choose ZHIZHEN anti-reflective glass?

1. Industry leader in performance & parameters. Light transmittance ≥ 98%, visual reflectance ≤ 1%, color rendering index ≥ 99.5%.
2. Excellent processability. Coating hardness≥6H, guaranteed surface quality. It can be easy bent tempered.
3. Advantages in sizes. Max size 12000*3300mm, meeting the requirements for jumbo size and cutting rate optimization.
4. Brand power. Jinjing has been inheriting and serving museum display industry for 15 years and integrating quality and brand.

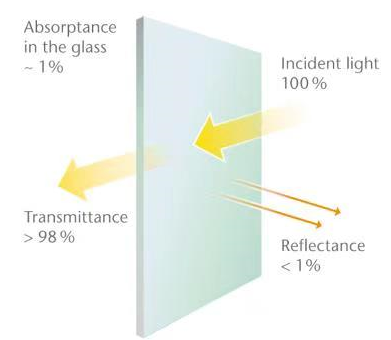

减反射玻璃原理

Optical Parameters

 Product Light Transmittance % Reflectivity% Color Rendering Index % UV Transmittance %
3.2mm Double Side AR Glass 98.7 0.9 ≥99.5 50.1
6mm Single Side AR Glass 94.5 5 ≥99.5 56.6



No. Product Configuration Tvis/ VLT% Rvis/VLR Out% Rvis/VLR  In% sunlight U Value  Air
(W/M2·℃)
SC SHGC
Tsol% Rsol% Winter Summer
1 5UC+1.52PVB+6SB60#4+12Ar+6UC 78.63 13.69 14.30 40.92 34.77 1.36 1.28 0.496 0.431
2 5AR#1+1.52PVB+6SB60#4+12Ar+6UC 80.59 10.31 11.75 41.59 34.09 1.38 1.30 0.502 0.437
3 6UC+12Ar+6SB60#3+1.52PVB+5AR#6 80.60 11.70 10.34 41.59 44.06 1.38 1.30 0.577 0.502
4 5UC+1.52PVB+6SB72#4+12Ar+6UC 71.66 14.43 15.18 28.56 44.22 1.32 1.22 0.352 0.306
5 5AR#1+1.52PVB+6SB72#4+12Ar+6UC 74.33 11.09 13.19 29.51 43.16 1.36 1.28 0.363 0.316
6 6UC+12Ar+6SB72#3+1.52PVB+5AR#6 74.33 13.19 11.09 29.51 56.02 1.36 1.28 0.436 0.380

Applications & Projects

ZHIZHEN Anti-reflective Glass (2)

China National Museum

ZHIZHEN Anti-reflective Glass (3)

Guanghan Sanxingdui Museum
